USA Assembled & Imported Pallet Jacks


The USA Assembled Titan Pallet Jacks come with a 2 year pump warranty. If you are on a budget, please consider the Imported Castle series, they are a quality, time tested unit backed by a 1 year pump warranty.

ALTRA_LIFT


CASTLE BRAND
Pallet TRUCKS

IMPORTED

5,500 lb. Capacity
3" Lowered Height - 7.75" Raised Height
Adjustable Push Rods - 6.25" Wide Forks
Overload Bypass Valve
Poly on Steel Wheels & Rollers
Ships Fully Assembled
1 Year Pump Warranty

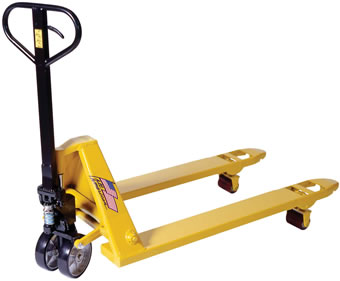

The CASTLE BRAND hand pallet jack is a budget-conscious hand truck ideal for use on-the-go on light-duty loading docks, delivery trucks, or moving product from backroom storage to retail shelving. Adjustable tubular push rods provide reliable performance and quick easy maintenance, while self-lubricating bushings at all pivot points help improve efficiency and minimize wear. The teardrop handle provides comfortable and precise load control for the operator, with a handle return spring that automatically restores the handle to its vertical position.
Hydraulic Pump - The hydraulic pump features an over-load bypass valve.
Durable Wheel Construction - Polyurethane on steel core load and steer wheels.
Easy Pallet Entry - Forks have solid nylon fork tip entry rollers to ease transition over the bottom pallet boards.
Teardrop Handle Design - Features a 3-way position lever for load control.
Imported - 1 Year Pump Warranty
Purchase Multiple Units & Save on Freight! Extra Freight charges may apply to difficult deliveries.


Model #  Capacity Frame Width  Fork Length  Weight Price  Add 1 to Cart Add 2 to Cart Add 3 to Cart Add 4 to Cart
A2748Y 5500 LBS
Most Popular
27" 48" 167 LBS $494.00
A2148Y 5500 LBS 20.5" 48" 152 LBS $494.00
A2736Y 5500 LBS 27" 36" 147 LBS $494.00
A2136Y 5500 LBS 20.5" 36" 142 LBS $494.00


Return to home page

Standard Titan L5 & C5 Lift-Rite Pallet Truck (Model LCR & LCS)
Assembled in USA!
♦ 5500# Capacity
♦ 3" Lowered Height/7.75" Raised Height
♦ Adjustable Push Rods/7" Wide Forks
♦ 2 Year "Hassle Free" Pump Warranty
LCR, LCS & L5 Manual



Lift_Rite_Titan_LCRWarranty

The standard Lift-Rite L5 Titan pallet truck is made for general warehouse use.  The capacity rating is 5500lbs at a 24” load center. The unit’s lowered height measures 3” and the raised height is 7.75”. Black nylon wheels and rollers are standard. Each single fork is 7” wide and an assortment of frame widths and lengths are offered. The Titan C5 Specials offer non-standard sizes for special applications. Every unit carries a 2 year pump warranty. Various wheel options and accessories are also available. Built in USA! Frame is now made in China, Wheels and Rollers in Taiwan and the Pump is made in Sweden.
Purchase Multiple Units & Save on Freight! Extra Freight charges may apply to difficult deliveries.

Model #
Capacity
Frame Width
Fork Length
Weight
Price
 Add 1 to Cart Add 2 to Cart Add 3 to Cart Add 4 to Cart

LCR552736

5500 LBS
27
36
149 LBS
$685.00

LCR552742

5500 LBS
27
42
158 LBS
$685.00

LCR552748

5500 LBS
Most Popular Size
27
48
167 LBS
$685.00
Model #
Capacity
Frame Width
Fork Length
Weight
Price
 Add 1 to Cart Add 2 to Cart Add 3 to Cart Add 4 to Cart


LCR552036

5500 LBS
20.5
36
146 LBS
$685.00

LCR552042

5500 LBS
20.5
42
150 LBS
$685.00

LCR552048

5500 LBS
20.5
48
159 LBS
$685.00
Model LCS - Titan C5 Specials
Model #
Capacity
Frame Width
Fork Length
Weight
Price
 Add to Cart

LCS55-5

5500 LBS
27
60
225 LBS
$1,179.00


LCS55-6

5500 LBS
27
72
250 LBS
$1,223.00


LCS55-96

5500 LBS
27
96
325 LBS
$1,596.00

LCS55-2072 5500 LBS 20.5 72 225 LBS. $1,248.00

LCS55-2060 5500 LBS 20.5 60 225 lbs. $1,248.00


Special Delivery $90.00 Freight Surcharge Required for Military, Government, Farms, Rural Deliveries, Residential or deliveries without a dock or forklift to unload. Please click the button below to add to your order if this applies. Extra Freight charges may apply to difficult deliveries.

Note: You are welcome to call your order in to 770-410-3456. You may qualify for a better freight rate and we will be happy to assist you. We charge $139.00 freight for the LCR units if you checkout online, however, if special delivery charges apply as outlined above, you will be liable for the additional charges.

Military or Government deliveries, Farms, rural deliveries, no dock or forklift to unload, liftgate deliveries, add $90.00.

Special Options

White Nylon Wheels and Rollers (Non-marking) or
Black Polyurethane Wheels
and Rollers
  $101.00 per
truck add-on
White Nylon or Black Polyurethane Wheel Upgrade
Steel Wheels & Rollers
Steel Wheels
Steel Wheels and Rollers (Installed)   $168.00 per truck add-on
3” Skid Adaptor - raises height 3", flips up out of the way   $392.00
60” Tall Load Backrest (27" units only)   $280.00



Return to home page

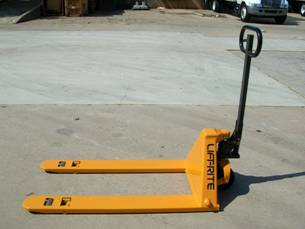

Lift-Rite Pallet Truck - Low Profile M5 & U5
Assembled in USA with Swedish Made Pump!
♦ Low Fork Profile/ 2" or 1-3/4" Lowered Height
♦ Nylon Steer Wheels/ Durable Steel Load Rollers
♦ Adjustable Push Rods/6
♦ Adjustable Push Rods/7" Wide Forks
♦ 2 Year "Hassle Free" Pump Warranty
♦ 5000# Capacity



Lift-Rite_Titan_LowWarranty

The Low-Profile M5 and Ultra-Low U5 Lift-Rite pallet trucks are designed for low clearance pallet or skid openings.  The capacity rating is 5000lbs at a 24” load center. The unit’s lowered height measures 2” on the low profile and 1.75” on the ultra low. The raised heights are 6.75” and 6.5”. Black nylon steer wheels and steel load rollers are standard. Each single fork is 6” wide and an assortment of frame widths and lengths are offered. 4 Way Entry available. Each unit carries a 2 year pump warranty.  Assembled in USA!

Lift-Rite Low Profile - M5 (L50M)  - 2” Lowered Height

Model #

Capacity

Frame Width

Fork Length

Weight

Price

Add to Cart

LCM50270042

5000 LBS
27''
42''
165 LBS
$1,005.00

LCM50270048

5000 LBS
27''
48''
175 LBS
$1,005.00

LCM50205048

5000 LBS
20.5''
48''
160 LBS
$1,007.00

LCM4W330048
4 Way Entry

5000 LBS
33''
48''
205 LBS
$1,022.00


Lift-Rite Ultra Low - U5 (L50MU) - 1.75” Lowered Height

Model #
Capacity
Frame Width
Fork Length
Weight
Price
Add to Cart

LCU50270048

5000 LBS
27''
48''
175LBS
$1,047.00

LCU4W330048
4 Way Entry

5000 LBS
33''
48''
205LBS
$1,074.00

 Return to home page

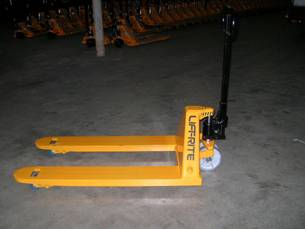

Lift-Rite Pallet Truck - Heavy Duty Series C8 (Model L80) 8000 lb. Capacity



Lift-Rite_C8_Heavy_Duty

This Pallet Jack is a TANK! The heavy-duty C8 Lift-Rite pallet trucks are designed for carrying more weight than the standard units. The capacity is 8,000lbs at a 24” load center. The unit’s lowered height measures 3.25” and the raised height is 7.75”. Steel steer wheels and load rollers are standard and each single fork is 7” wide. Every unit carries a 1 year pump warranty.  Assembled in USA! Frame is now made in China, Wheels and Rollers in Taiwan and the Pump is made in Sweden.

Model #
Capacity
Frame Width
Fork Length
Weight
Price
Add to Cart

L80-3

8,000 LBS
27''
48''
305 LBS
$2,045.00

Return to home page
Lift-Rite Ergonomic Lifters - Ergo-Lift High Lift Jacks
Manual & Electric

Designed for use with open bottom pallets, lifts to 31.5". Lowered Height 3.25"
Ergonomic solutions are key to modern material handling. The Ergonomic 3000 provides load positioning and lifting solutions in a portable configuration.

Model #
Capacity
Frame Width
Fork Length
Operation
Weight
Price
Add to Cart

RG-30MA

3,000 LBS
27''
48''
Manual
340 LBS
$2,239.00

RG-30MB

3,000 LBS
20.5''
48''
Manual
330 LBS
$2,239.00

RG-30EA

3,000 LBS
27''
48''
Electric
440 LBS
$3,951.00

RG-30EB

3,000 LBS
20.5''
48''
Electric
430 LBS
$3,863.00
Options Hand Remote Control Price
  Ergo Hand Remote $433.00



RG30M270048 (RG-30MA)

Specifications:

Capacity: 3,000 lbs

Fork Length: 48 inches

Frame Width: 27.00 inches

Fork Width: 7.00 inches

Low Height: 3.25 inches

Raised Height: 31.50 inches

Wheel Diameter: 8.00 inches

Wheel Type: Nylon

Roller Diameter: 3.00 inches

Roller Type: Nylon

Weight: 340 lbs

Product Features:

Durable powder coat paint finish
Solid Steel Scissor Legs
Manually Operated Pump with Quick lift
Tear-Drop Handle
Solid One-Piece Lift Piston

RG30E270048 (RG-30EA)


RG30E270048 (RG-30EA) Specifications:

Capacity: 3,000 lbs

Fork Length: 48 inches

Frame Width: 27.00 inches

Fork Width: 7.00 inches

Low Height: 3.25 inches

Raised Height: 31.50 inches

Wheel Diameter: 8.00 inches

Wheel Type: Nylon

Roller Diameter: 3.00 inches

Roller Type: Nylon

Weight: 440 lbs
