Eagle 2000A Heavy Duty Stretch Wrap Machine – Semi-Automatic Operation – 150% Manual Pre-Stretch – 48″ x 64″ Max. Load Dims. 87.5″ Max. Load Height, 3,500 lb. Cap., Free Pallet Jack Ramp

Product Description

The Eagle 2000A series stretch wrapper is assembled in the USA and features a non-powered pre-stretch unit to maximize film efficiency. Using an electronic photo eye, the Eagle 2000 automatically recognizes load height and adjusts carriage travel to create an effective wrap cycle. The turntable offers a soft start and soft stop feature to ensure gentle handling of the load being wrapped. The turntable resets itself automatically upon completion of each load. The available features provide for increased production and a cost per load savings that can easily justify owning an Eagle 2000 series stretch wrapper. Economical price, efficient design and quality craftsmanship in an entry level stretch wrapper.

*The Eagle 2000A stretch wrapper features a non-powered pre-stretch unit.

• Non-Power Prestretch

• Free Standard Pallet Jack Ramp

• Semi-Automatic or Manual Operation

• PLC (Programmable Logic Controller)

• LCD Display with Integrated Controls

• ALHS (Automatic Load-Height Sensor)

• Automatic Turntable Reset to Home Position

• Soft Start/Stop Turntable

• Handles Pallet Load Profiles A, B, & C

Specifications

Power Supply 110VAC/60Hz

1/2 hp Variable Frequency Drive Motor

Turntable Speed 0~12RPM

Turntable Diameter 59″

Turntable Height 3-1/8″

Mast Height 95″

Max. Package Height 87″

Max. Package Weight 3,500lbs

Film Carriage 20″

Machine Dimension (LxWxH) 96.5″x59″x99″

Machine Weight (Gross) 1,100lbs

5 Programmable Wrap Modes

1. Auto mode: Hit start button and the machine will wrap based on the pre-set numbers. Bottom wraps 1-9, top wraps 1-9, film over lay 2-4 inches.

2. Manual mode: You control turntable button 1, film carriage up button 2 and down button 3. You can also stop the film carriage in the middle of the pallet if you want to apply extra film on the middle of the pallet. This mode is good for loads lower than the photo eye or where you want to use different wraps than in auto mode.

3. Slow mode: This mode good for very light loads. It distinguishes the pre-stretch and force to load on the wrap up. This wrap stabilizes load. On the way down the pallet is wrapped according to the settings in the auto mode.

4. Single wrap: Just wraps on up cycle according to settings on auto mode and then the film carriage goes down, but does not wrap.

5. Top wait mode: Up cycle is wrapped according to auto mode. Once the film carriage reaches the top of the pallet it stops. Then the plastic wrap or corrugated sheet is put on the pallet. You hit the start button and film carriage wraps on the way down.

Specifications

Power Supply 110VAC/60Hz

Turntable Speed 12 RPM*

1 hp Variable Frequency Drive Motor

Turntable Diameter 59”

Turntable Height 3-1/8”

Turntable Diagonal 80”

Mast Height 95”

Max. Load Weight 5,000lbs

Min. Load Height 22″

Max. Load Height 87”

Stretch Film 20”**

Dimensions 96.5” x 59” x 99”

Weight 1,295lbs

*Maximum turntable speed can be increased from 12 RPM to 20 RPM upon request

**30″ film carriage available upon request

Available Options

Turntable Loading Ramp*

– Standard Duty

– Heavy Duty

*for 59″ & 78″ turntables

Porch Extensions

– Minimum Length 10″

– Maximum Length 40″

Film Carriage

– 30″ Carriage (250%)

– 30″ Carriage (100%)

– 20″ Carriage (250%)

– 20″ Carriage (100%)

– 20″ Carriage (Manual)

Load-Height Sensor

– Infrared

– Digital Laser

Roping Pallet System

Pressure Mat Switch

Scale Integration

Tow-Motor/Turntable

– Stop Brackets (no hit)

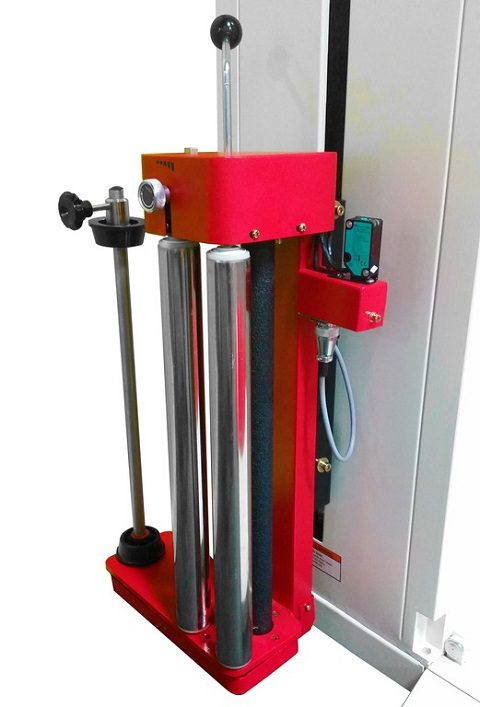

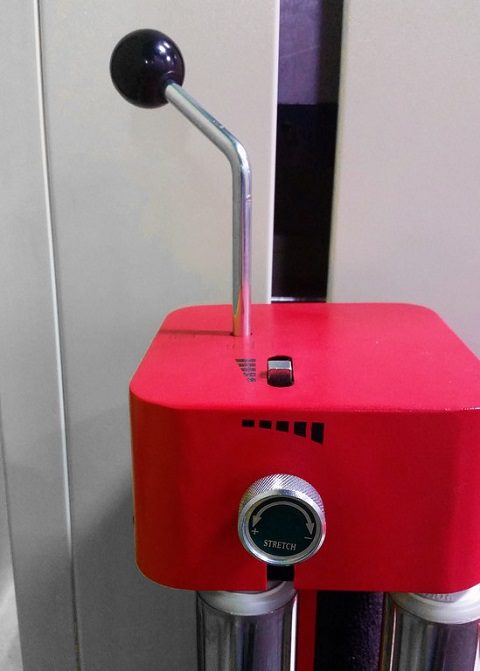

Manual Pre-Stretch Film Carriage

Up to 150% Manual Pre-Stretch

Soft Start/Stop Turntable

1 hp Variable Frequency Drive Motor

Scale Option Weight Display

Optional Scale Printer

Black Photo Eye Swap

2000 Setup Video

Questions? We are here to help! Please call (770) 410-3456

Customer Testimonials

“We have had the Stretch Wrapper now for several months and we could not be happier.

The machine works flawlessly and our warehouse staff loves it as they can shrink our goods on pallets in no time without breaking a sweat or getting dizzy running around with a handshrinker.

Thank you also for your great and extremely fast customer service in terms of switching the regular photo-eye to the one for black shrink film. The exchange was a piece of cake and it works like a charm.

Again, thank you for everything, a great machine, great service and a very, very competitive price for the unit.

I will not hesitate a moment to recommend you to anybody who needs a shrink-wrap machine.” Eagle 2000B

“Our efficiency has increased at least 25% over hand wrapping” Eagle 2000K

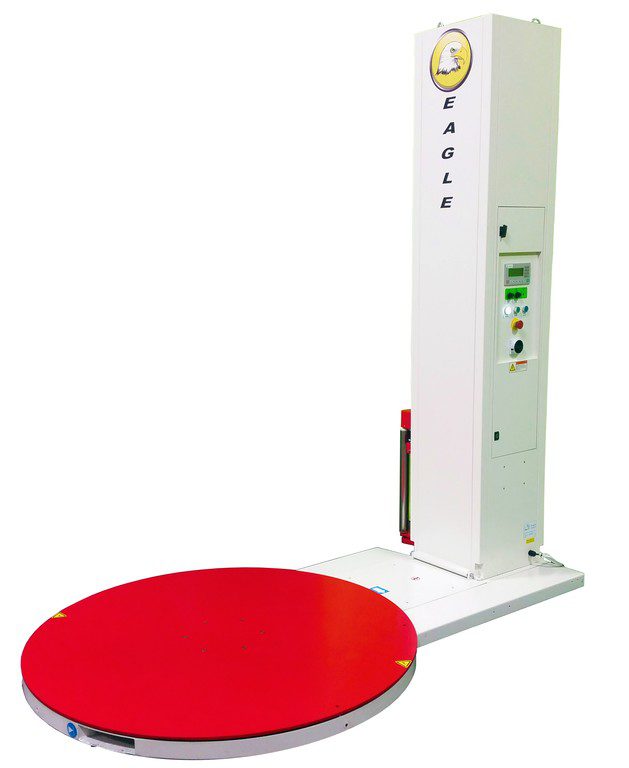

Eagle 2000A Semi-Automatic Stretch Wrap Machine

Questions? Please call or email us, we have considerable knowledge

to help you make an educated purchase.

Download Operations Manual

Control Panel 2000B

Scale Option
