Eagle T150 Uniform Side Belt Top Flap Folder – Carton Sizes Length: 6.00” to Infinity, Width: 4.875″ to 19.375″, Height: 5″ to 20.625″

$3,850.00

Eagle T150 Uniform Carton Sealer
with Top Flap Folder
Carton Size
Length: 6.00” to Infinity
Width: 4.25” to 19.75”
Height: 4.5” to 19.75”

Freight not included – to be determined or customer arranged.

Category:
Red and white case sealer on rollers
Packaging machine with tape roll
Person leaping on sand dune
Electronic circuit diagram sketch
Industrial motor close-up in machinery
Red, green, white buttons on machine
Safety emergency stop switch
Industrial belt pulley with gear mechanism

Product Description

The Eagle T150 folds top flaps on cartons before sealing shut. The side belt drives ensure proper carton sealing even with cartons that are short in height but have an extended length.

Features

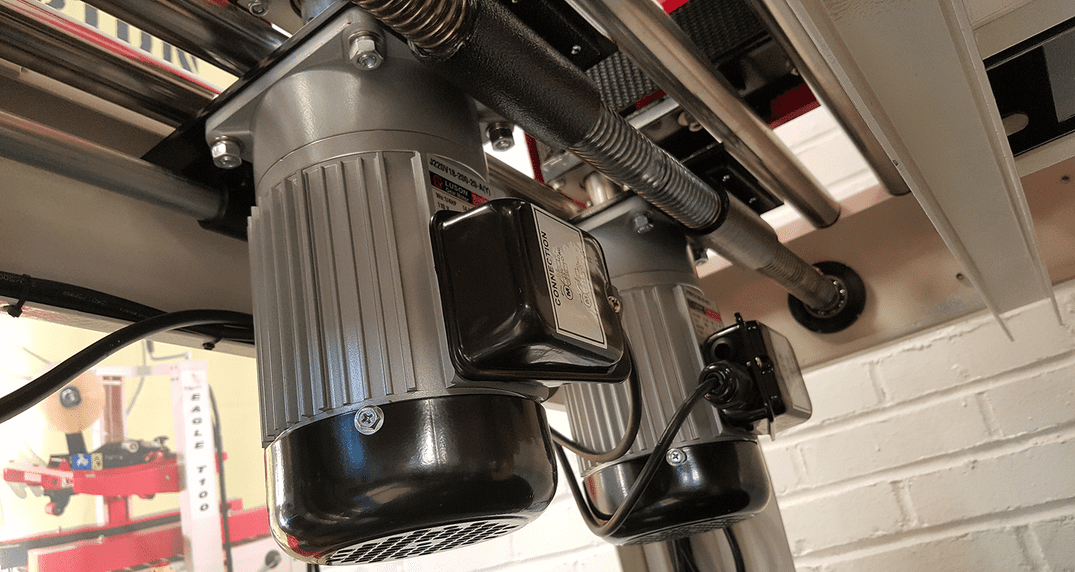

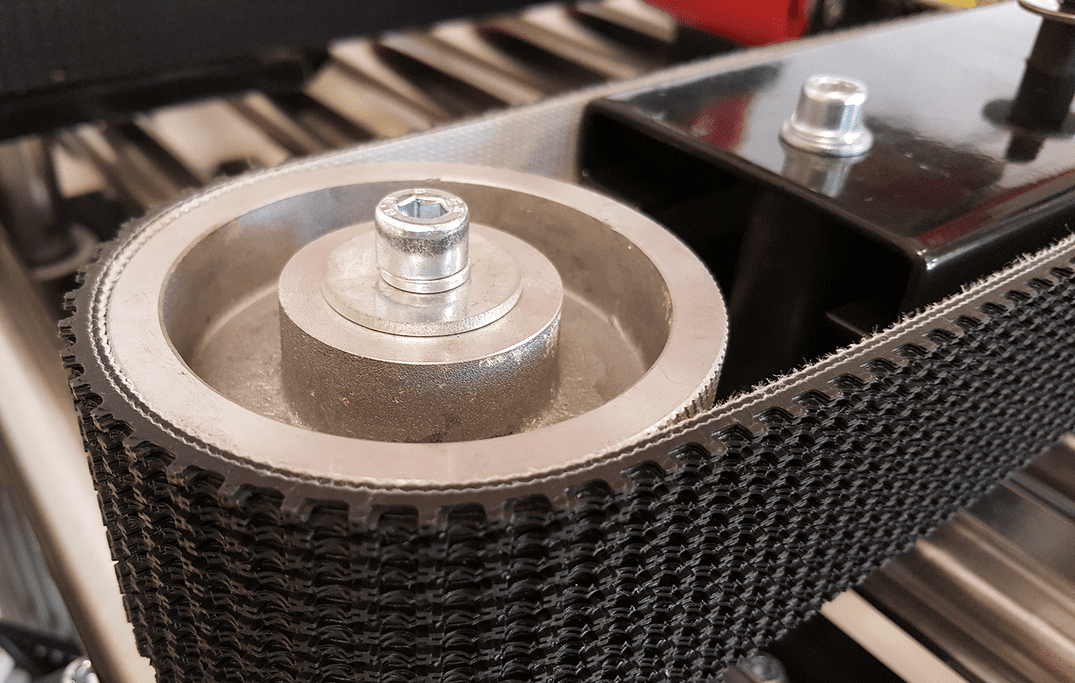

  • Side Drive Belts
  • Locking Casters
  • Top Squeezers
  • Dual Mast

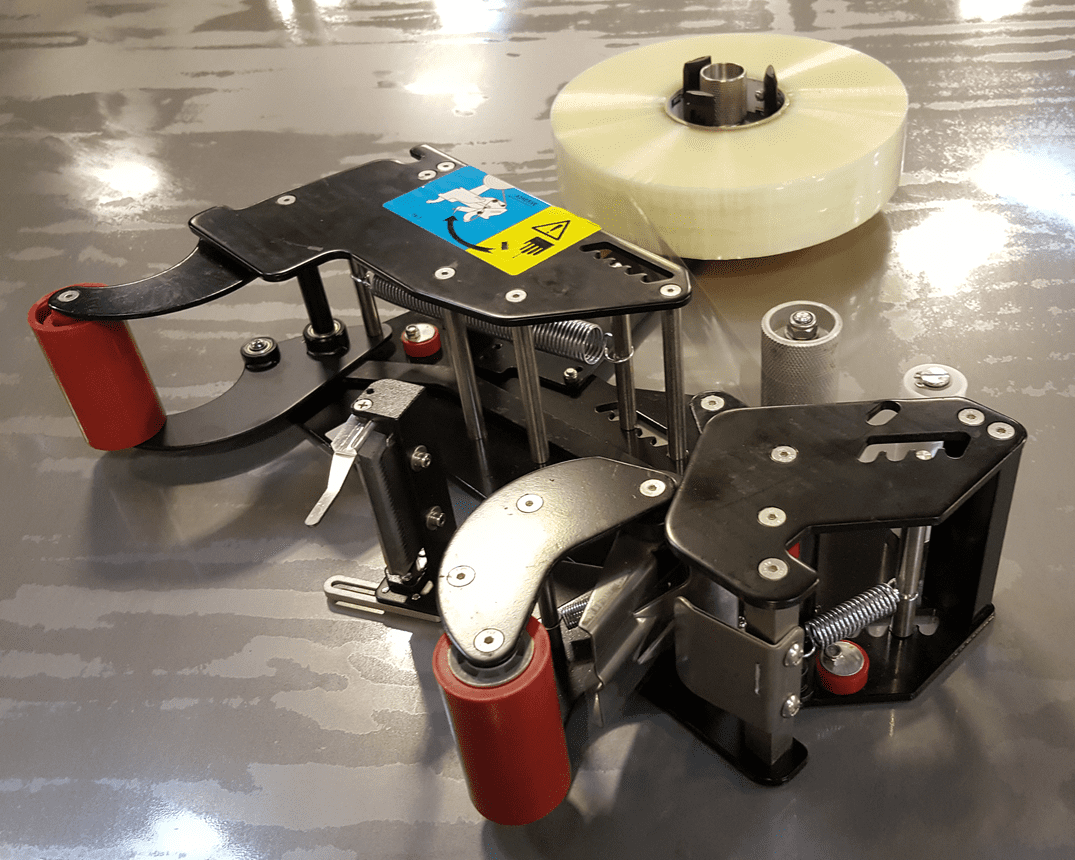

  • Top and Bottom Tape Heads
  • Extension Roller Tables



Specifications

Power Supply 110VAC / 60Hz, Single Phase
Carton Size L (6” – Infinity), W (4.25” – 19.75”), H (4.5” – 19.75”)
Working Speed 30 Cartons/Minute*
Tape Material BOPP
Tape Size 2” or 3”

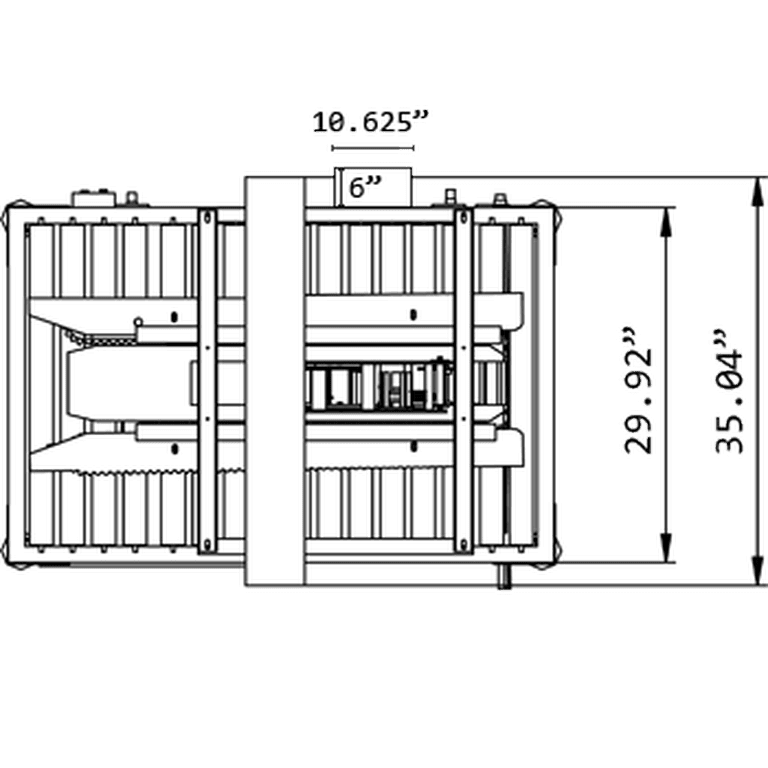

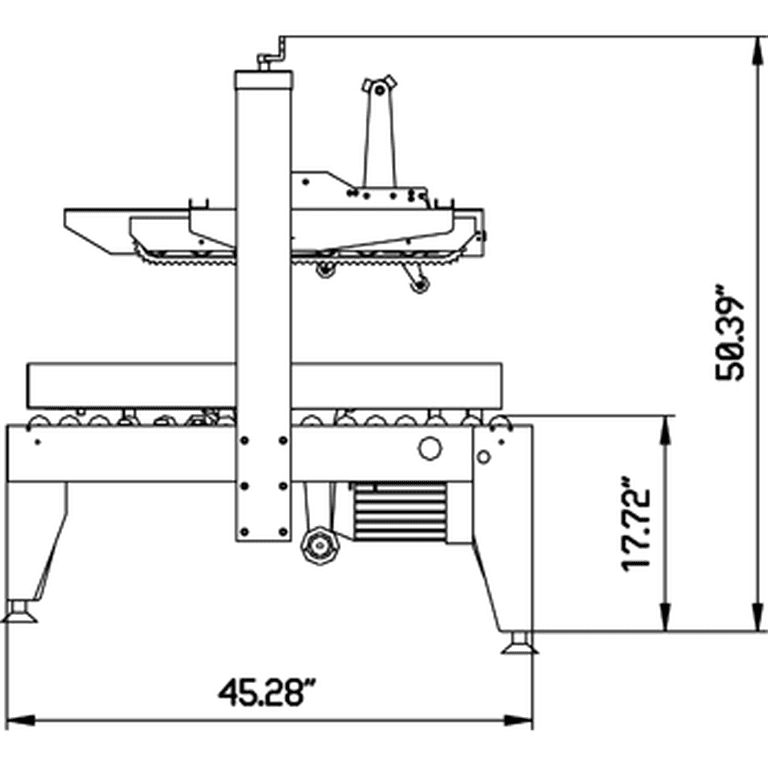

Machine Dimensions 38.2” × 35” × 50.3”
Machine Weight 520 lbs.
Min./Max. Working Height 17.5” / 27.75”
Available in Stainless Steel Yes
1-Year Warranty on Parts Yes



Options

Available Options

• High Speed Motors

• Roller Conveyor

• Extended Working Height

• Indexer

 Additional Features

• Hold Down Attachment

• Low Tape Sensor

• Broken Tape Sensor



Watch Product Video



Equipment Financing Available!

Equipment Financing

Click logo to apply for financing.

Questions? We are here to help! Please call

(770) 410-3456

Eagle T150

Eagle Carton Sealers come standard with locking/rolling caster wheels,

height adjustable legs, in and out-feed extension tables,

top squeezers, spare parts kit, and tool kit.

Watch Additional Product Video

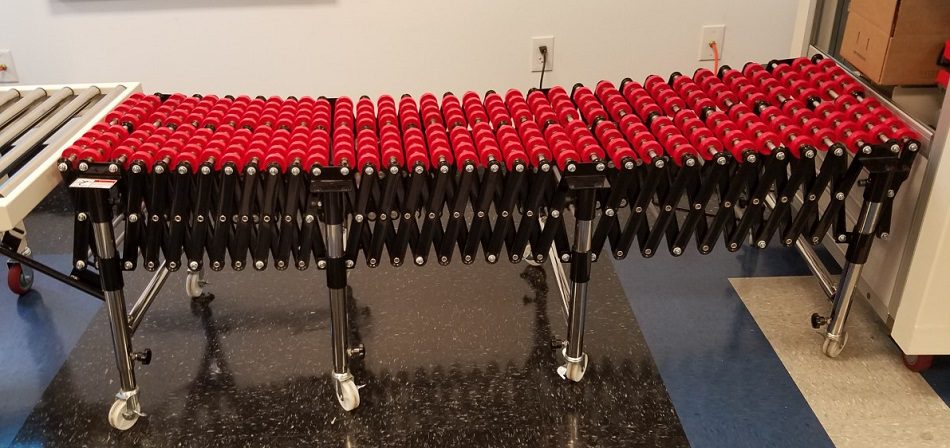

Optional Flexible Skate Wheel Conveyor

Expandable from 5′ to 15′ – 18″ Wide – Height Adjustable Legs – 23.5″ to 36″ Max. Working Height

Flexible Skate Wheel Conveyor

Additional Information

Weight 520 lbs
Dimensions 38.2 × 35 × 50.3 in
Choose Tape Width

2" Standard, 3" Wide

Showing 1 - 4 out of 4

Page 1 out of 1

Tick Products Quick Price Action
Extra Bottom Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Extra Top Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Flexible Conveyor
Expandable from 5′ to 15′, 18″ Wide, Steel Frame, Red Plastic Skate Wheels, Height Adjustable Legs from 23.5″ to 36″ Working Height, Steel Back Stop
$1,615.00
H.D.A.: Hold Down Assembly
Securely holds empty cartons in place. Installs on the in-feed roller extension table
$515.00
