Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons – Case Size: Length: 6.5″ to 13″, Width: 4.5″ to 15″, Height: 3.5 to 16″

$33,000.00

Eagle T20CF-SM
Case Erector and Bottom Sealer for Small Cartons
Case Size
Length: 6.5″ to 13″
Width: 4.5″ to 15″
Height: 3.5 to 16″
* The cartons length and width added together cannot be greater than 18.25”

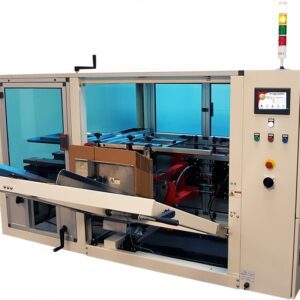

pictures show the unit with the Optional Powered Magazine.
Freight not included – to be determined or customer arranged.

Category:
Industrial packing equipment with control panel

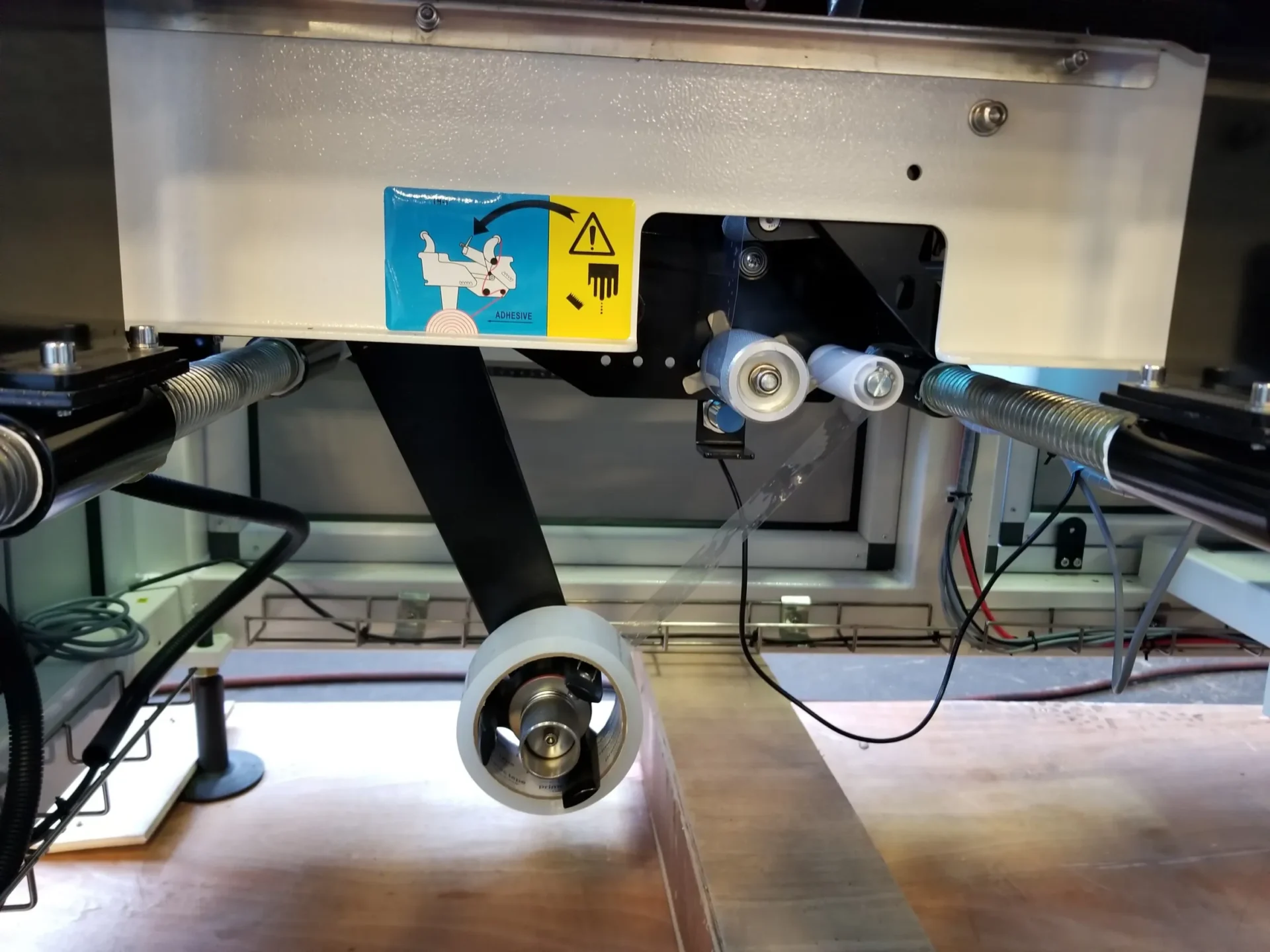

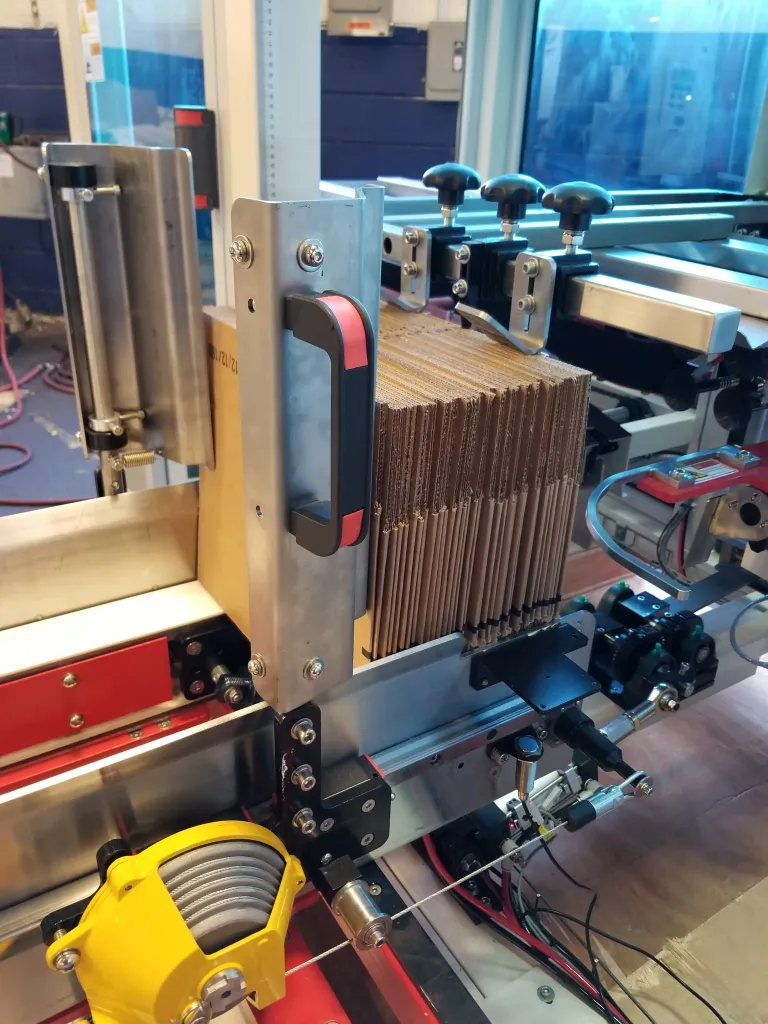

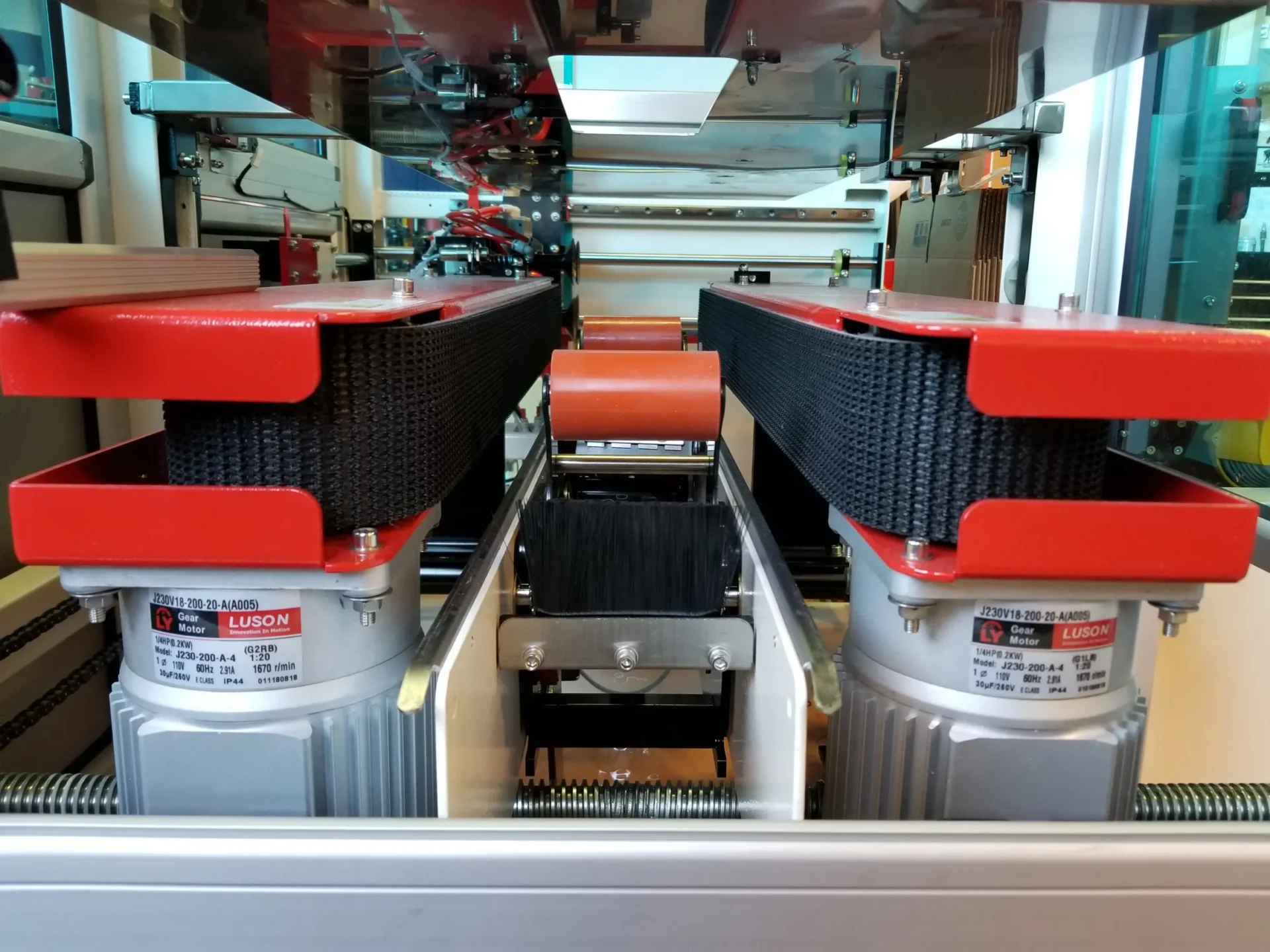

Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 2

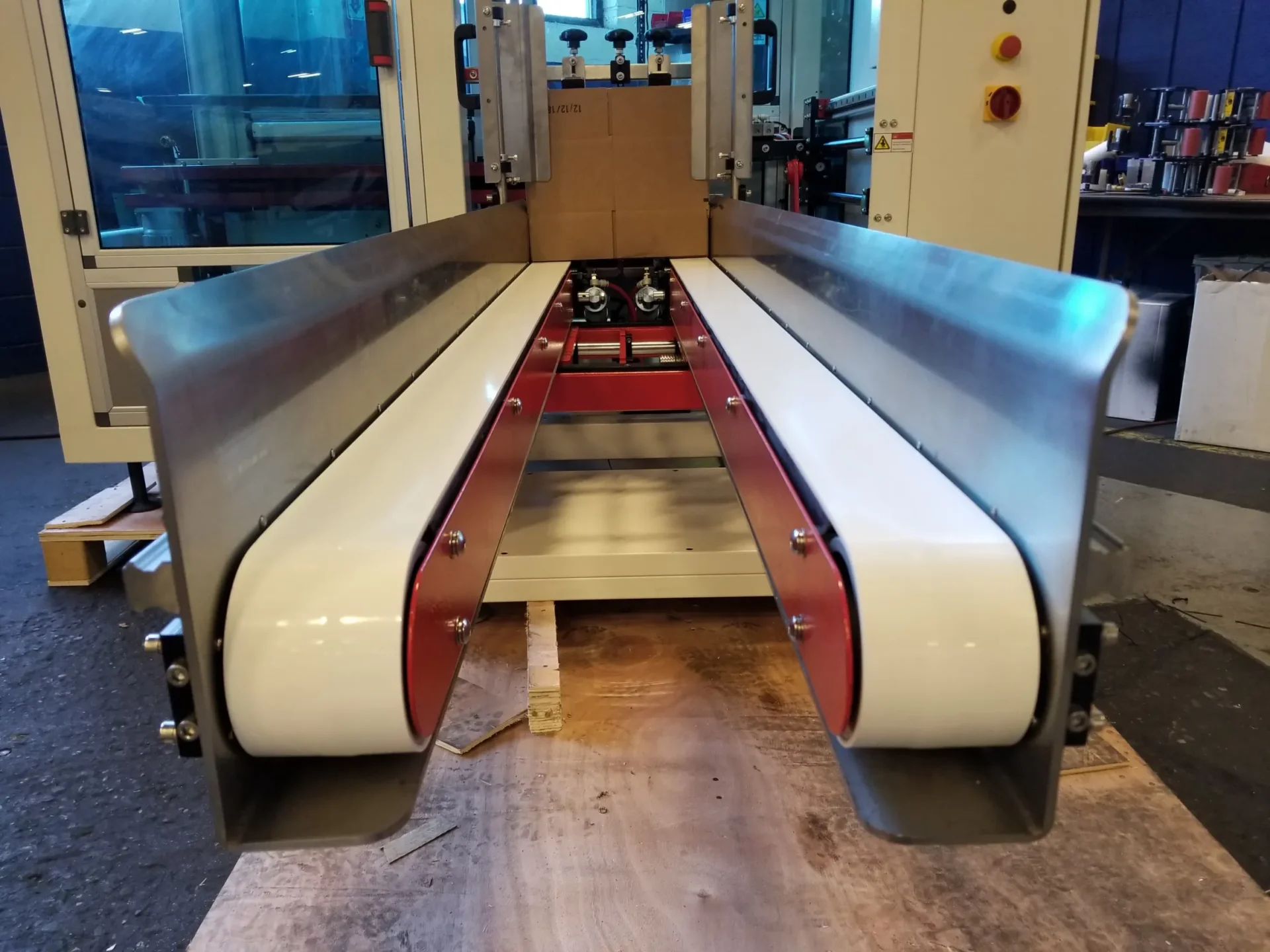

Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 3
Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 4
Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 5
Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 6
Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 7
Eagle T20CF-SM Fully Automatic Case Erector and Bottom Sealer for Small Cartons - Case Size: Length: 6.5" to 13", Width: 4.5" to 15", Height: 3.5 to 16" - Image 8

Product Description

The Eagle T20CF-SM is well suited for smaller spaces. The pictures show the Optional Powered Magazine (PM) that automatically allows for continued operation. The standard unit comes with a gravity feed. Designed like the Eagle T20CF only smaller. The Eagle T20CF-SM constructs and seals the carton bottom cover during operation. Total process time per carton is only 3 seconds! With the vertical storage system, cartons can be added at any time without stopping the machine. The Eagle T20CF-SM offers increased productivity and is suitable for various carton sizes and can be manually adjust in under 2 minutes. Eagle Case Erectors come with a 1-year warranty on non-wear parts. We also offer free lifetime technical support on all of our machinery.

Eagle offers a full line of industrial-grade case erectors. The Eagle T20CF-SM is designed with the operator in mind. With quick and easy case changeover capability, this machine is sure to be the workhorse of your packaging department. The Eagle T20CF -SM(here)comes standard with many features other manufacturers charge extra for.

Features

5-Point industry-leading emergency stop and safety system

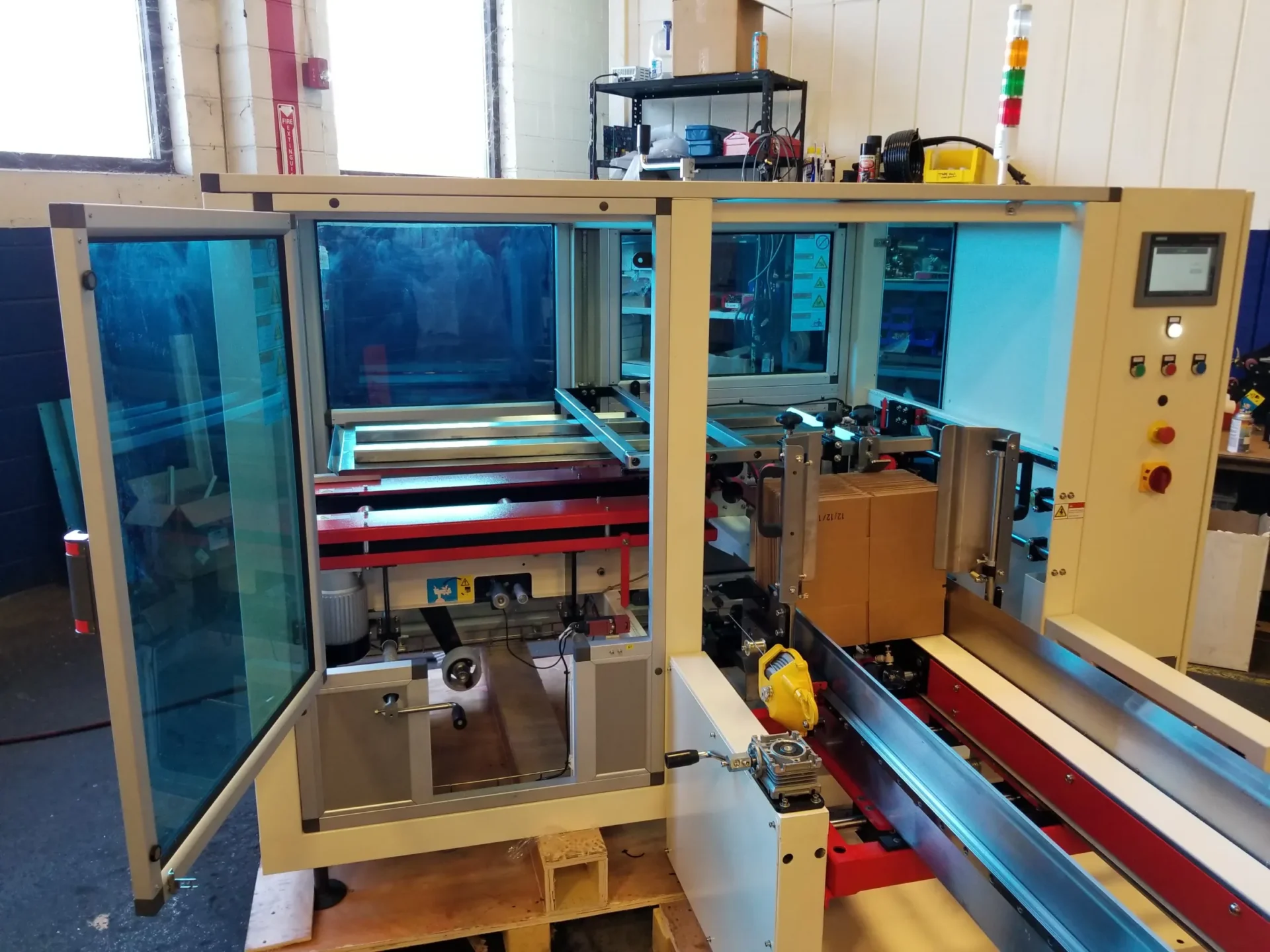

• Fully enclosed machine with safety access doors

• Tape head 2″ only

• Fully automatic case folding and sealing

• Fast and simple case adjustment

• Low case warning alarm

• Broken tape warning alarm

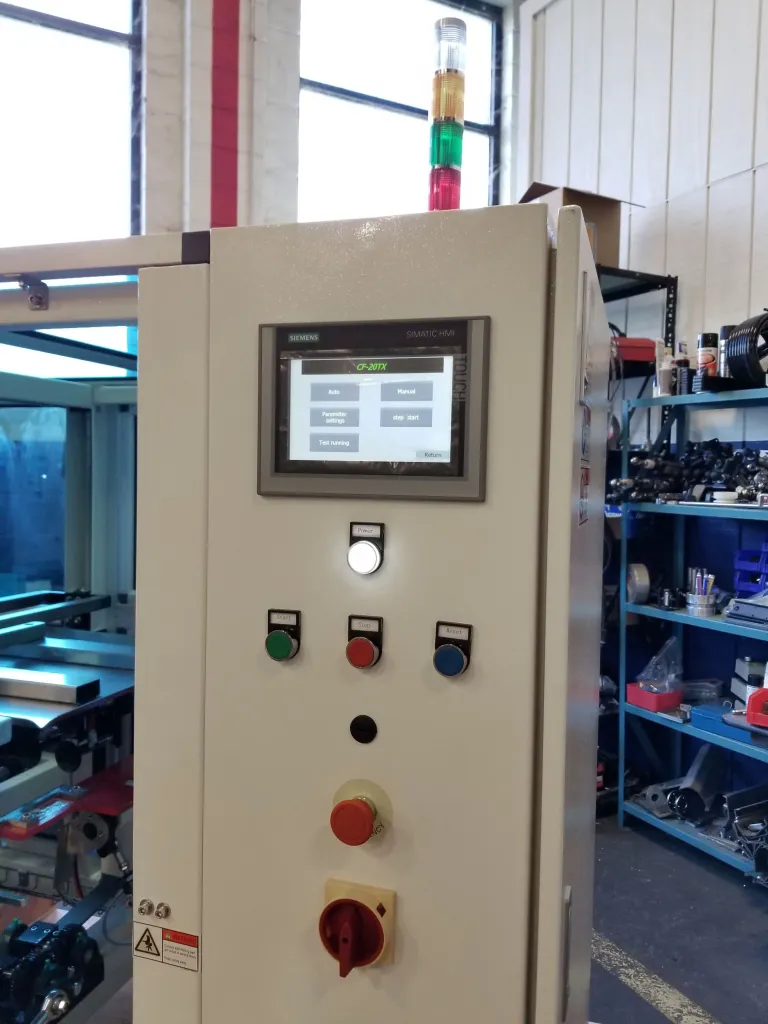

• Easy to use 7″ color touch screen

• Self-cleaning system

• Up to 15 cases per minute

Specifications

Power supply – 110VAC/60Hz
Air Pressure – 85 psi 14+ CFM
Tape Width – 2″
Working Speed – 10 to 12 cases/min
Case Size
Length: 6.5″ to 13″
Width: 4.5″ to 15″

Height: 3.5″ to 16″
Machine Dimension (W x L x H) – 86.6″ x 80.7″ x 53″
Machine weight – 881.8 Lbs
Environment conditions
Humidity – 98%
Temperature – 32ºF to 104ºF

Equipment Financing Available!

Click logo to apply for financing

Questions? We are here to help! Please call (770) 410-3456

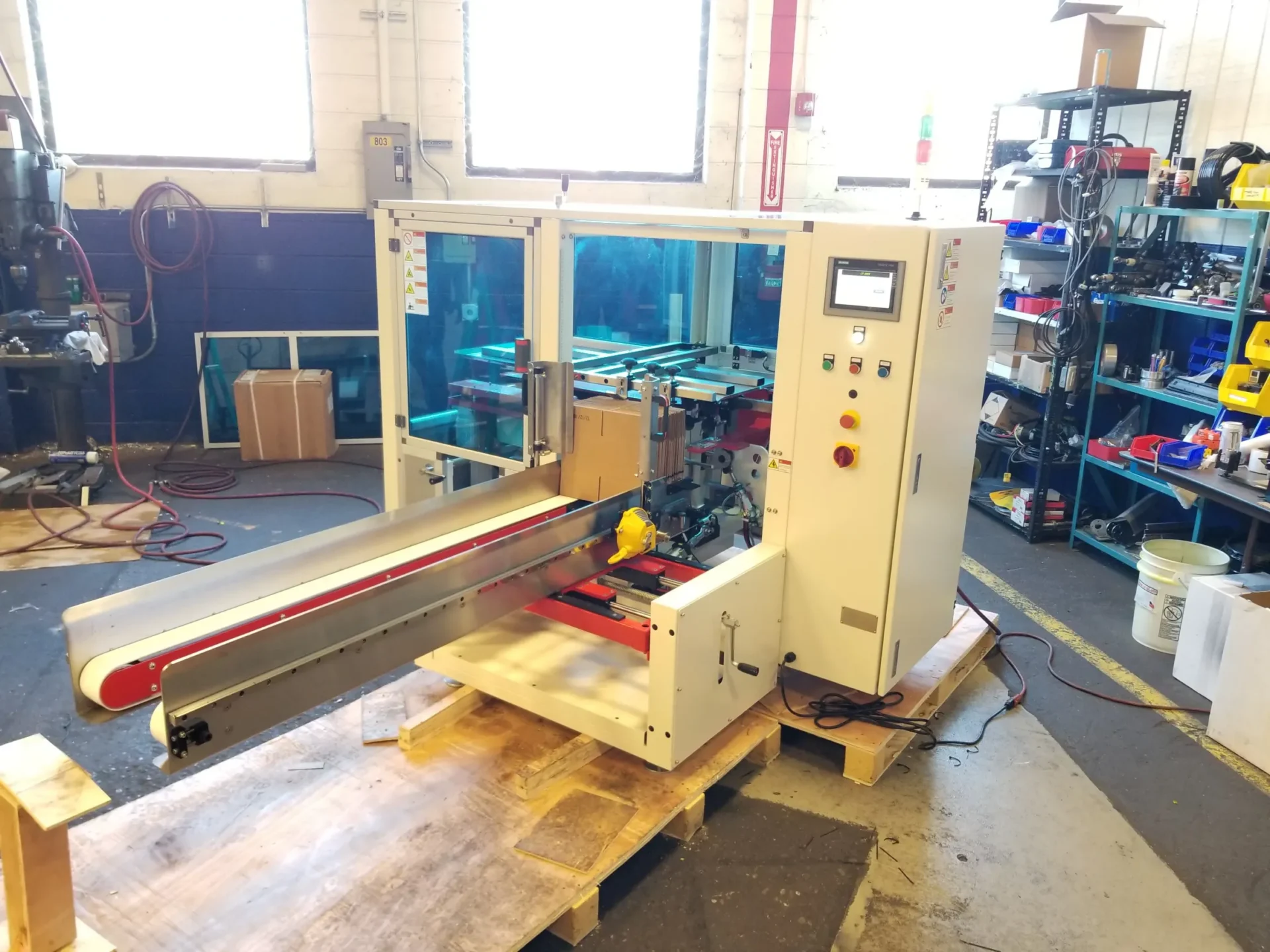

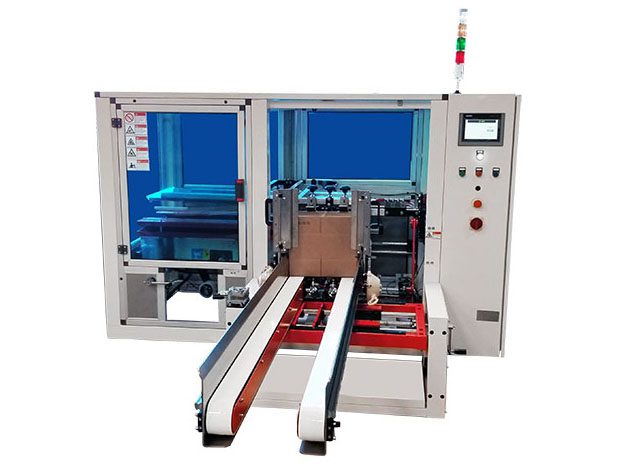

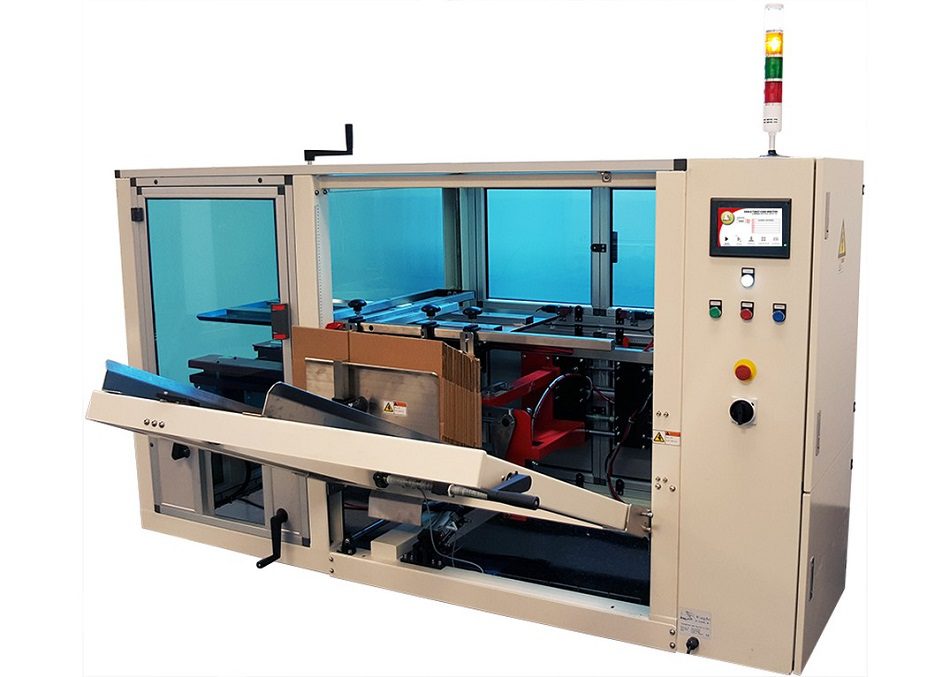

Shown with Optional Powered Magazine



Additional Information

Weight 881.8 lbs
Dimensions 80.7 × 86.6 × 53 in
