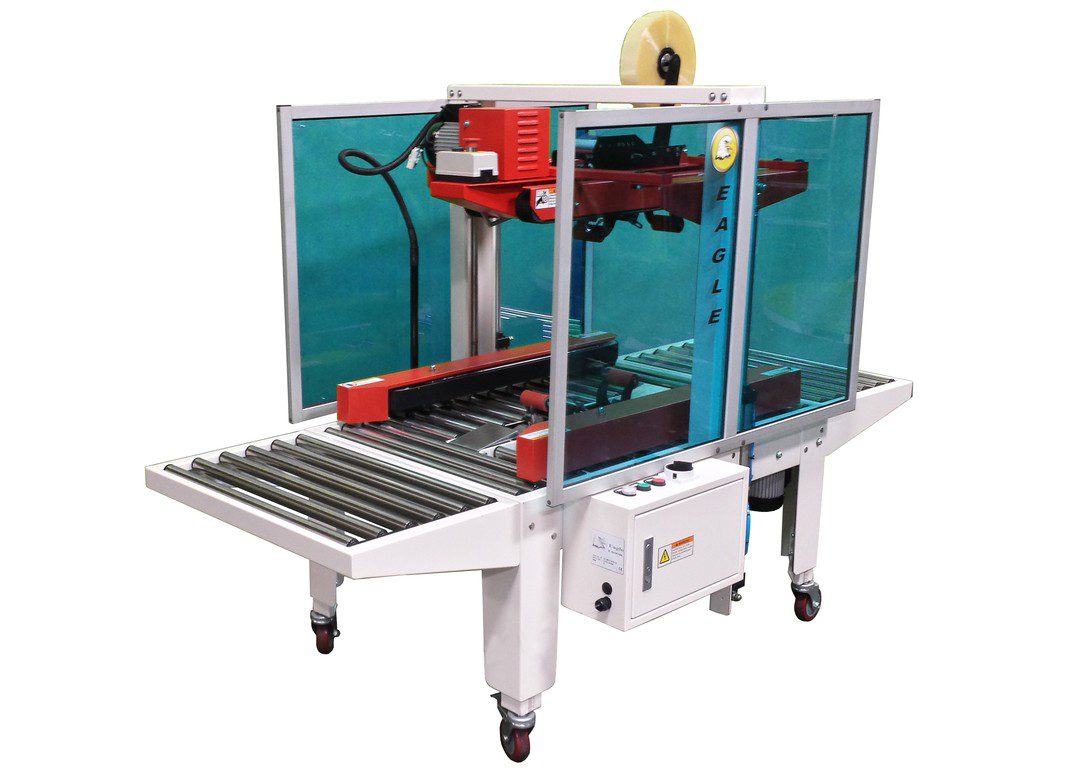

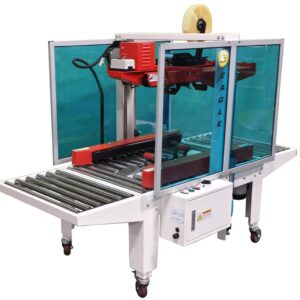

Eagle T400R Random Auto-Adjusting Top & Side Belt

$6,550.00

Eagle T400R
Random Top & Side Belt
Carton Size
Length: 6.00” to Infinity
Width: 6.75” to 22”
Height: 5.5” to 23.5”

Freight not included – to be determined or customer arranged.

Category:
Industrial box sealing machine

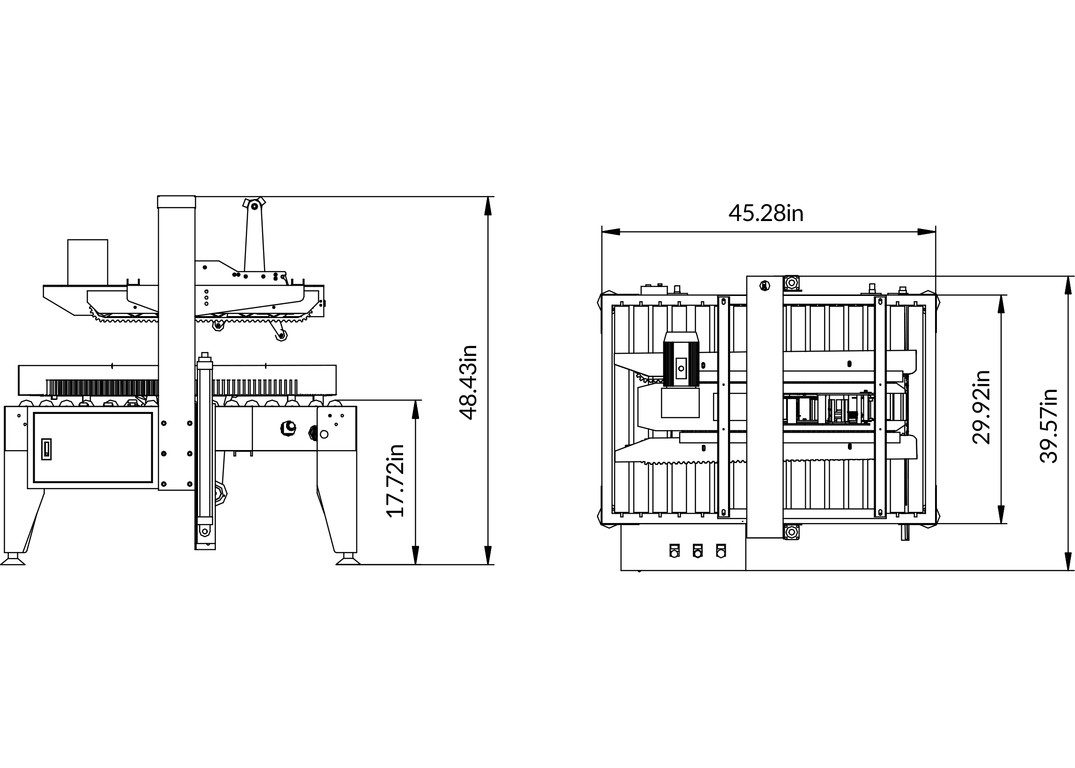

Industrial equipment blueprint with size annotations

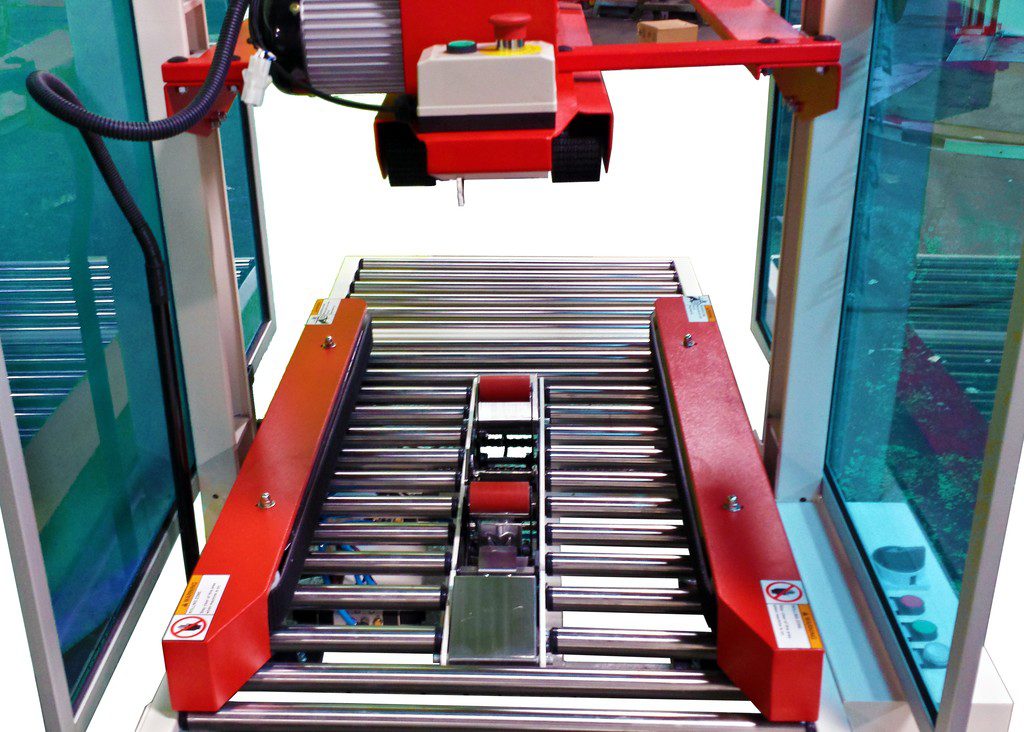

Automated packaging roller line with glass panels

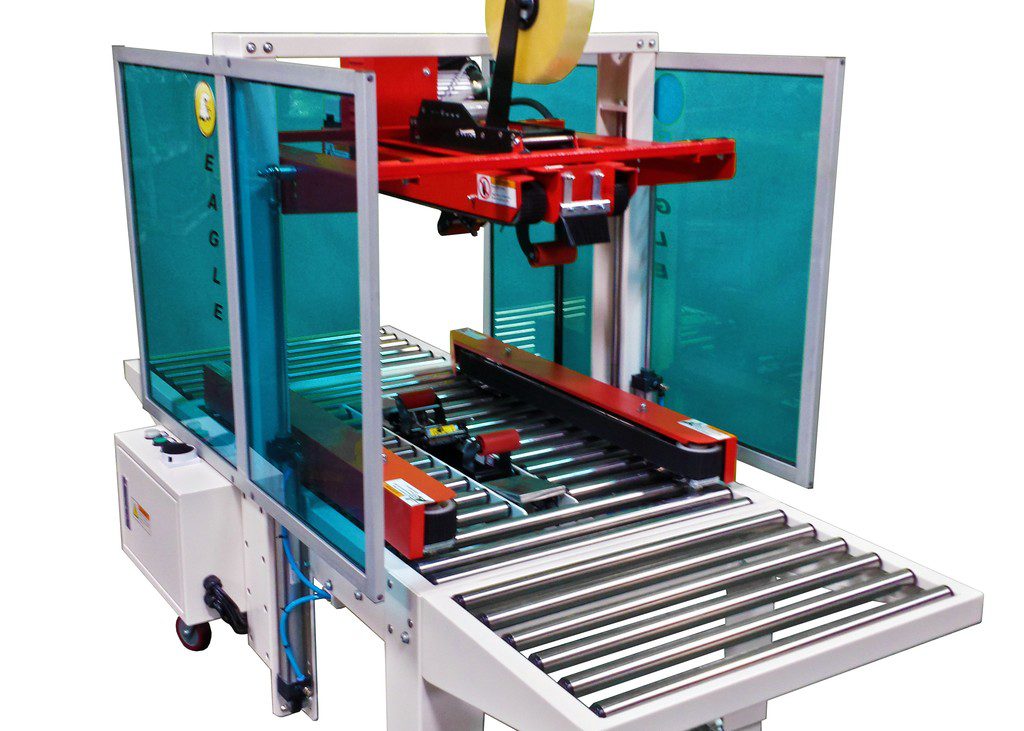

T400RB adjustable side belts with safety guards

Product Description

The Eagle T400R makes it possible for the operator to seal different sized cartons with no adjustments required. Featuring a set of top and side belts, the Eagle T400R can properly seal tall, narrow cartons with ease.

  • Top & Side Drive Belts
  • Locking Casters
  • Dual Mast
  • Top & Bottom Tape Heads
  • Extension Roller Tables
  • Automatically adjusts to the size of the carton within the parameters
  • 1-Year Warranty on Parts

We also offer free lifetime technical support on all of our machinery.

Specifications

Power Supply

110VAC/60Hz

Carton Size Length

6” – Infinity

Width

6.75” to 22”

Height

5.5” to 23.5”

Tape Width

2” and 3”

Tape Length

1,000 yd to 2,000 yd

Max Load

80 lbs

Air Consumption

1 CFM @ 80 PSI

Dimensions

45.5” x 41.6” x 50.75”

Shipping Weight

661 lbs

Sealing Speed

15 Cartons per Minute

Options

High Speed Motors

Hold Down Attachment

Roller Conveyor

Low Tape Sensor

Extended Working Height

Broken Tape Sensor

Indexer



Equipment Financing Available!

Equipment Financing

Click logo to apply for financing.

Questions? We are here to help! Please call

(770) 410-3456

Eagle T400R

Watch Product Video

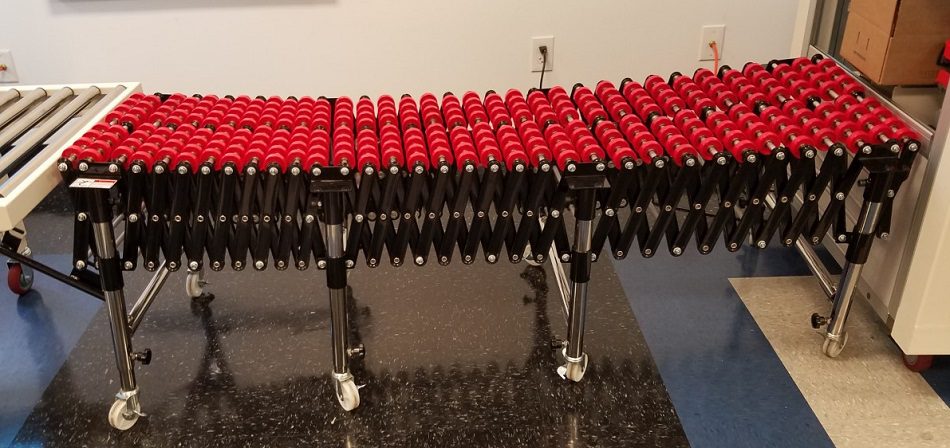

Optional Flexible Skate Wheel Conveyor

Expandable from 5′ to 15′ – 18″ Wide – Height Adjustable Legs – 23.5″ to 36″ Max. Working Height

Flexible Skate Wheel Conveyor

Additional Information

Dimensions 45.5 × 41.6 × 50.75 in
Choose Tape Width

2" Standard, 3" Wide

Showing 1 - 4 out of 4

Page 1 out of 1

Tick Products Quick Price Action
Extra Bottom Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Extra Top Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Flexible Conveyor
Expandable from 5′ to 15′, 18″ Wide, Steel Frame, Red Plastic Skate Wheels, Height Adjustable Legs from 23.5″ to 36″ Working Height, Steel Back Stop
$1,615.00
H.D.A.: Hold Down Assembly
Securely holds empty cartons in place. Installs on the in-feed roller extension table
$515.00
