Eagle T400RL Random Auto-Adjusting Top & Side Belt

$7,200.00

Eagle T400RL
Random Top & Side Belt Carton Sealer
Carton Size
Length: 6.00” to Infinity
Width: 6.75” to 27.25”
Height: 5.5” to 28.25”

Freight not included – to be determined or customer arranged.

Choose Tape Width
Category:
Eagle T400R top-seal case taping machine

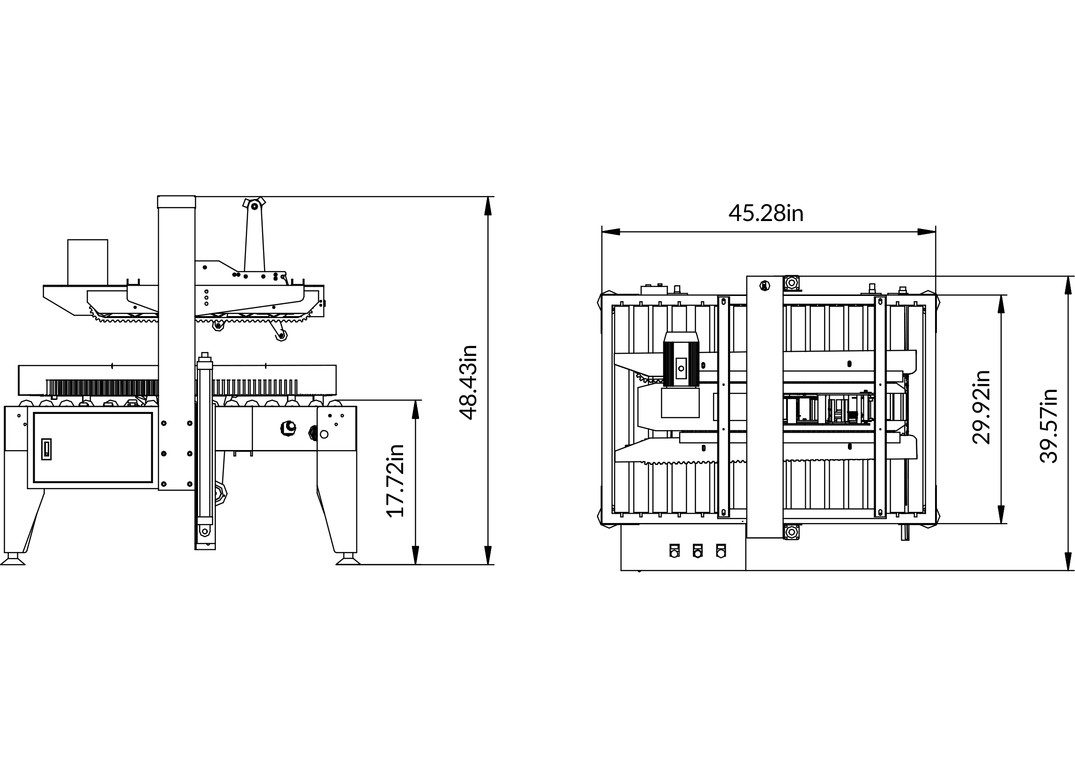

Industrial machine technical drawing with dimensions

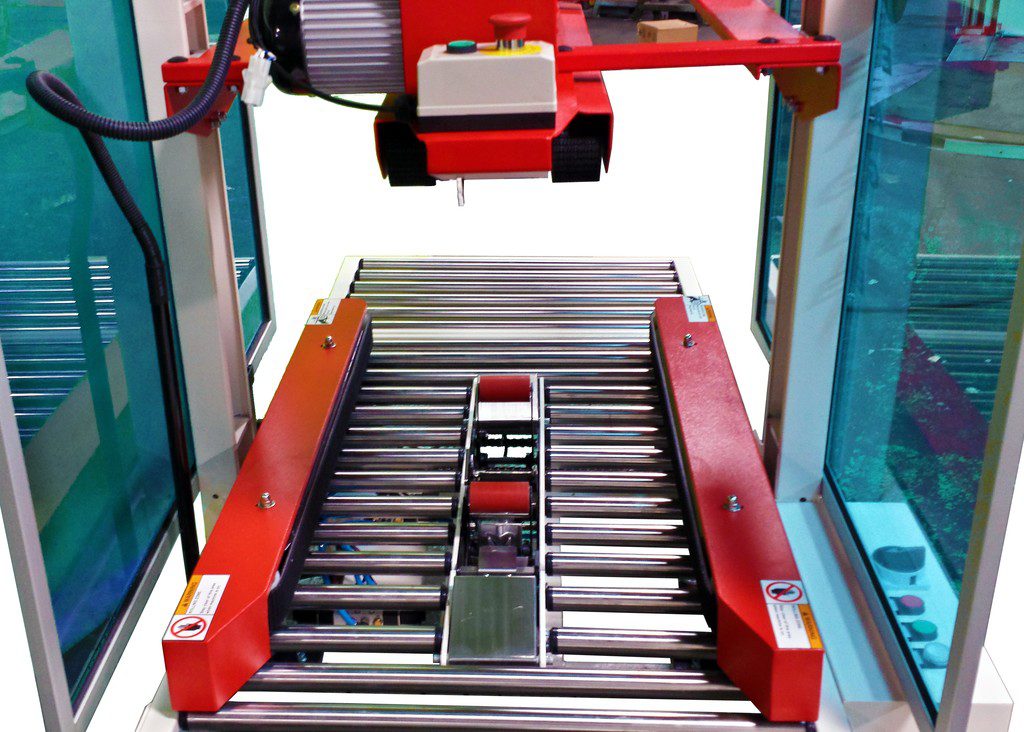

Red-framed roller conveyor with sensor head

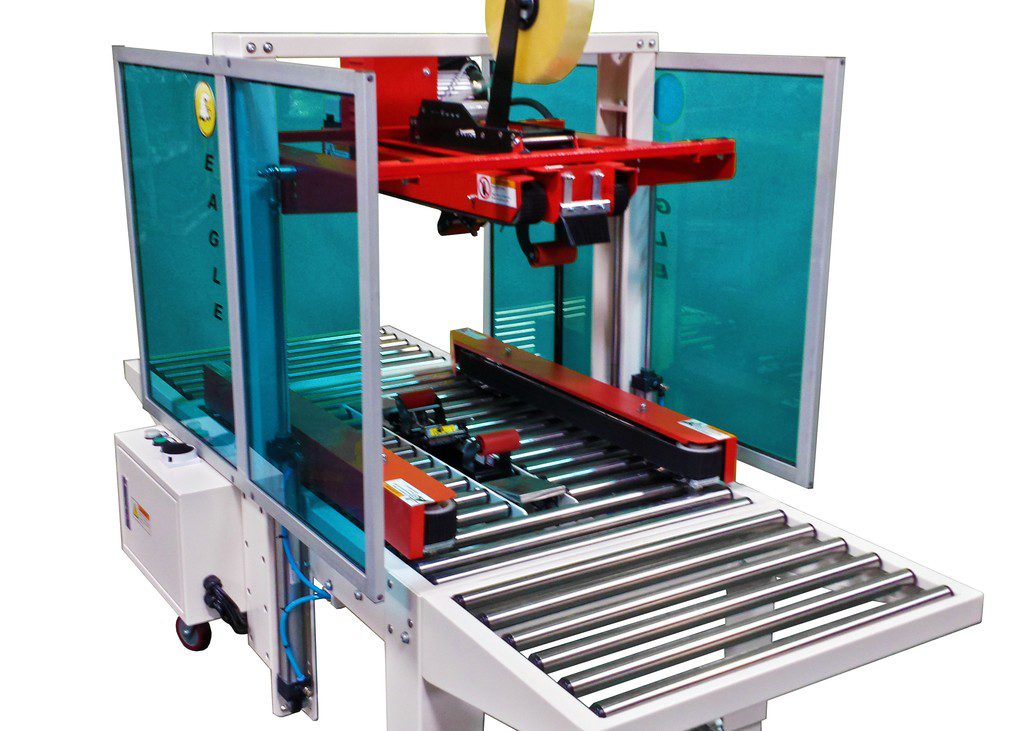

Box sealing conveyor system

Product Description

The Eagle T400RL makes it possible for the operator to seal different sized cartons with no adjustments required. Featuring a set of top and side belts, the Eagle T400RL can properly seal tall, narrow cartons with ease.

  • Top & Side Drive Belts
  • Locking Casters
  • Dual Mast
  • Top & Bottom Tape Heads
  • Extension Roller Tables
  • Automatically Adjusts to the Size of the Carton Within the Parameters

1-Year Warranty on Parts



Specifications

Power Supply 110VAC / 60Hz
Carton Size Length 6” – Infinity
Width 6.75” to 27.25”
Height 5.5” to 28.25”
Tape Width

2” and 3”
Tape Length 1,000 yd to 2,000 yd
Max Load 80 lbs
Air Consumption 1 CFM @ 80 psi
Dimensions 45.5” x 41.6” x 50.75”
Shipping Weight 661 lbs
Sealing Speed 15 Cartons per Minute



Options

High Speed Motors Hold Down Attachment
Roller Conveyor Low Tape Sensor
Extended Working Height Broken Tape Sensor
Indexer



Equipment Financing Available!

Equipment Financing

Click logo to apply for financing.

Questions? We are here to help! Please call

(770) 410-3456

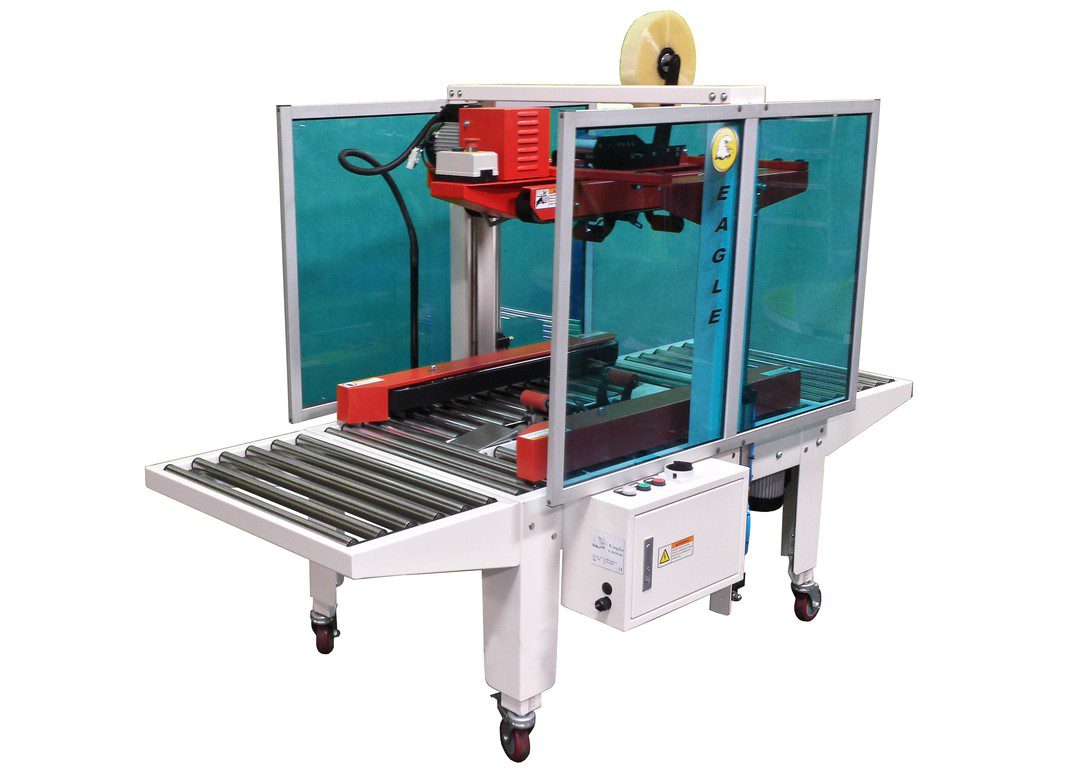

Eagle T400R

Watch Product Video

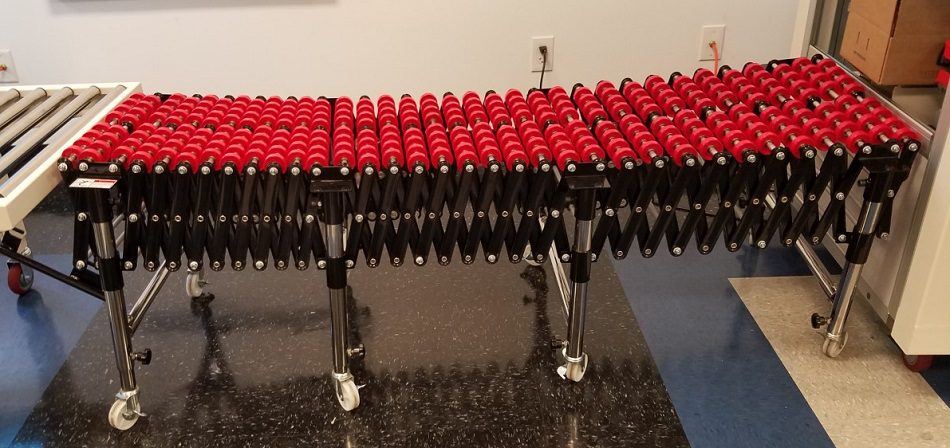

Optional Flexible Skate Wheel Conveyor

Expandable from 5′ to 15′ – 18″ Wide – Height Adjustable Legs – 23.5″ to 36″ Max. Working Height

Flexible Skate Wheel Conveyor

Additional Information

Weight 661 lbs
Dimensions 45.5 × 41.6 × 50.75 in
Choose Tape Width

2" Standard, 3" Wide

Showing 1 - 4 out of 4

Page 1 out of 1

Tick Products Quick Price Action
Extra Bottom Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Extra Top Tape Head
Standard Tape Head for Eagle Carton Sealers 2″ and 3″
$810.00
Flexible Conveyor
Expandable from 5′ to 15′, 18″ Wide, Steel Frame, Red Plastic Skate Wheels, Height Adjustable Legs from 23.5″ to 36″ Working Height, Steel Back Stop
$1,615.00
H.D.A.: Hold Down Assembly
Securely holds empty cartons in place. Installs on the in-feed roller extension table
$515.00
